Customized Heat Battery Storage
2025-06-18
59℃ PHASE-CHANGE THERMAL BATTERY
Based on own intellectual property rights of high energy storage density and stable phase-change materials, HeatMate has developed high efficiency phase-change thermal battery, which can collect and store low-cost, intermitent and unstable energy such as valley electricity, solar energy, industrial waste heat, etc., and then release them in a controllable way, which are widely used in the fields of clean heating, hot-water supply, grids peak regulation, and photovoltaic and photothermal energy utilization.
PARAMETERS
| Model | HM-059H650 | HM-059H500 |
| Dimension(mm) | 1180(L)x940(W)x1985(H) | 940(L)x940(W)x1985(H) |
| Weight (kg) | 2300 | 1800 |
| Phase Change Temperature (℃) | 59 | 59 |
| Rated Heat Storage Capacity (MJ/kWh) | 650/180 | 500/140 |
| Charging Temperature (℃) | 80~85 | 80~85 |
| Discharging Temperature (℃) | 40~55 | 40~55 |
| Charging/Discharging Power (kW) | 18~45 | 10~33 |
| Tube Side Design Pressure (MPa) | 1.0 | 1.0 |
| Rated Operating Condition Pressure Drop (kPa) | 100（36L/min） | 100（40L/min） |
| Connection Pipe Diameter | DN32(G1 1/4") | DN32(G1 1/4") |
| Heating Area per Unit (㎡) | 400~800 | 300~600 |
PRODUCT FEATURES
High Heat Storage Density
Heat storage capacity is 5 to 8 times that of water
Low Operating Costs
Operational costs reduced by 30% to 70%, low-carbon or zero-carbon heating.
Long Service Life
Equipment life exceeds 20 years.
Green, Safe, and Environmentally Friendly
Operates at atmospheric pressure, no harmful emissions, non-flammable, recyclable.
Easy Installation
Modular design, flexible configuration, standard interfaces, easy maintenance.
High Charge and Discharge Efficiency
Efficiency > 95%, less than 5% heat loss after 24h

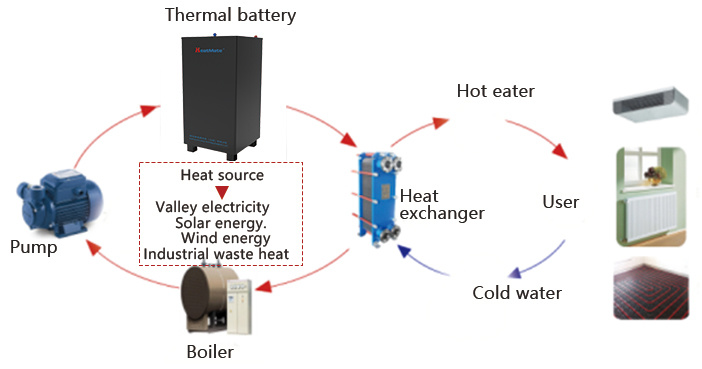

Heat storage/heating systems
01 Phase-Change Thermal Battery
Phase-change thermal battery are modularly installed toform thermal storage systems.
02 Heat Source Equipment
Electric boilers, solar collectors, waste heat boilers, high.temperature heat pumps, etc.;
03 Circulation Pumps
Circulation pumps circulate working medium (water oranti-freeze)to transfer heat from the heat sourceequipment to the thermal battery or the user end.
04 Heat Exchangers
Heat exchangers are often plate heat exchangers or volu-metric heat exchangers,which transfer heat from theprimary network to the secondary network.
05 Intelligent Control System
Intelligent control system realizes the switching of thesystem's charging and discharging modes and providesheat through the pipeline electric valve.
OPERATION MODE
Heat Charging
Heat is stored in the phase-change thermal battery by utilizing cheap energy such as off-peak electricity, solar energy, and waste heat.
Heat Release
Release the heat stored in the thermal battery; reduce the use of high-priced energy, reduce operating costs, and realize low-carbon or zero-carbon heating.
Application Scenarios
01 Commercial building + valley power clean Heating
02 Distributed photovoltaic system + clean heating
03 Solar thermal system + efficient heat storage utilization
04 High-temperature heat pump + heat storage clean heating
05 Multi-energy complementary heat utilization system
The Customized Heat Battery Storage system offers a reliable and energy-efficient solution tailored to your specific thermal energy needs. Designed for high performance, this Customized Heat Battery Storage unit ensures optimal heat retention and release, making it ideal for residential, commercial, and industrial applications. With flexible design options, it can be adapted to various heating systems and energy sources, ensuring seamless integration and improved energy utilization. Built with durable, eco-friendly materials, the Customized Heat Battery Storage is low-maintenance and long-lasting, helping reduce energy costs and environmental impact.
